Flow charts for 2E example

• ProcessEntryPoint: EntryPoint Horse

• PageGenerator: List Horse Page

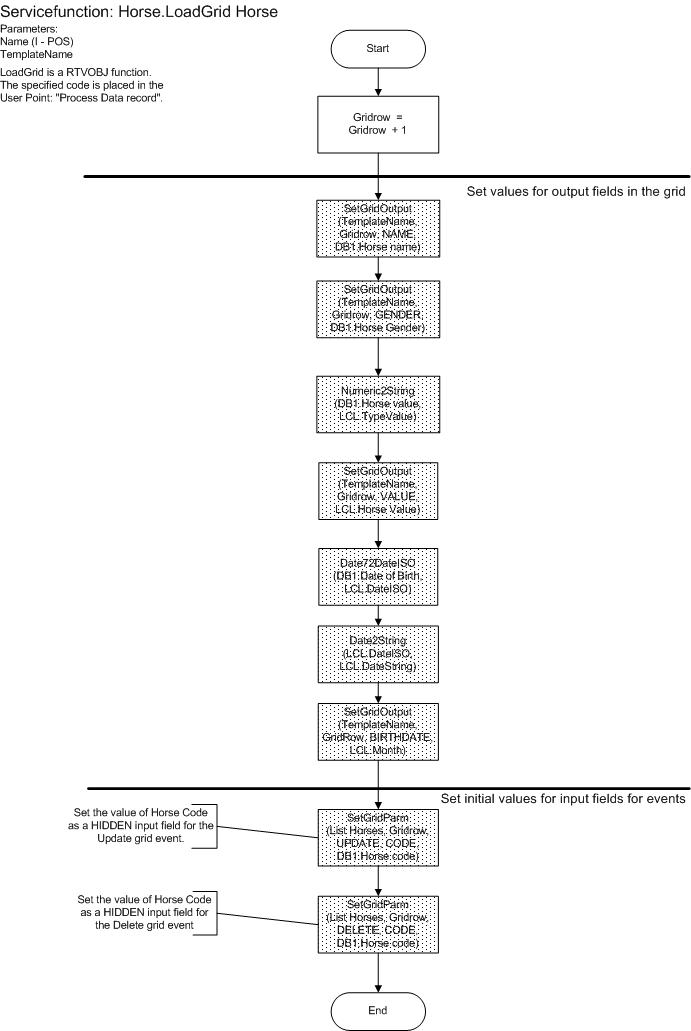

• Service Function: Load Grid

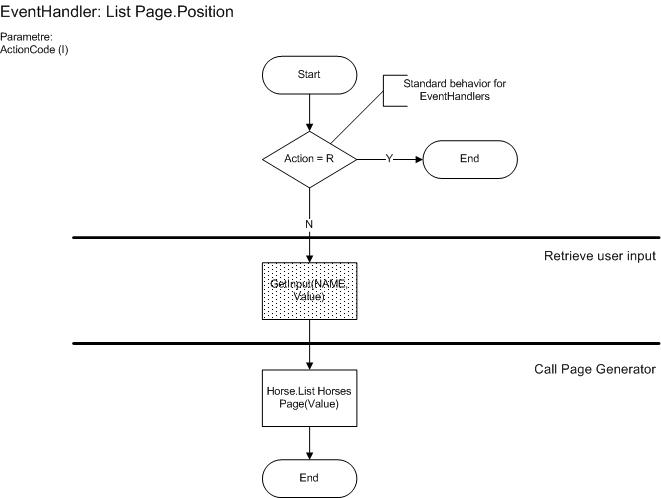

• EventHandler: List Horse Page.Position

• EventHandler: List Horse Page.Insert

• EventHandler: List Horse Page.Delete

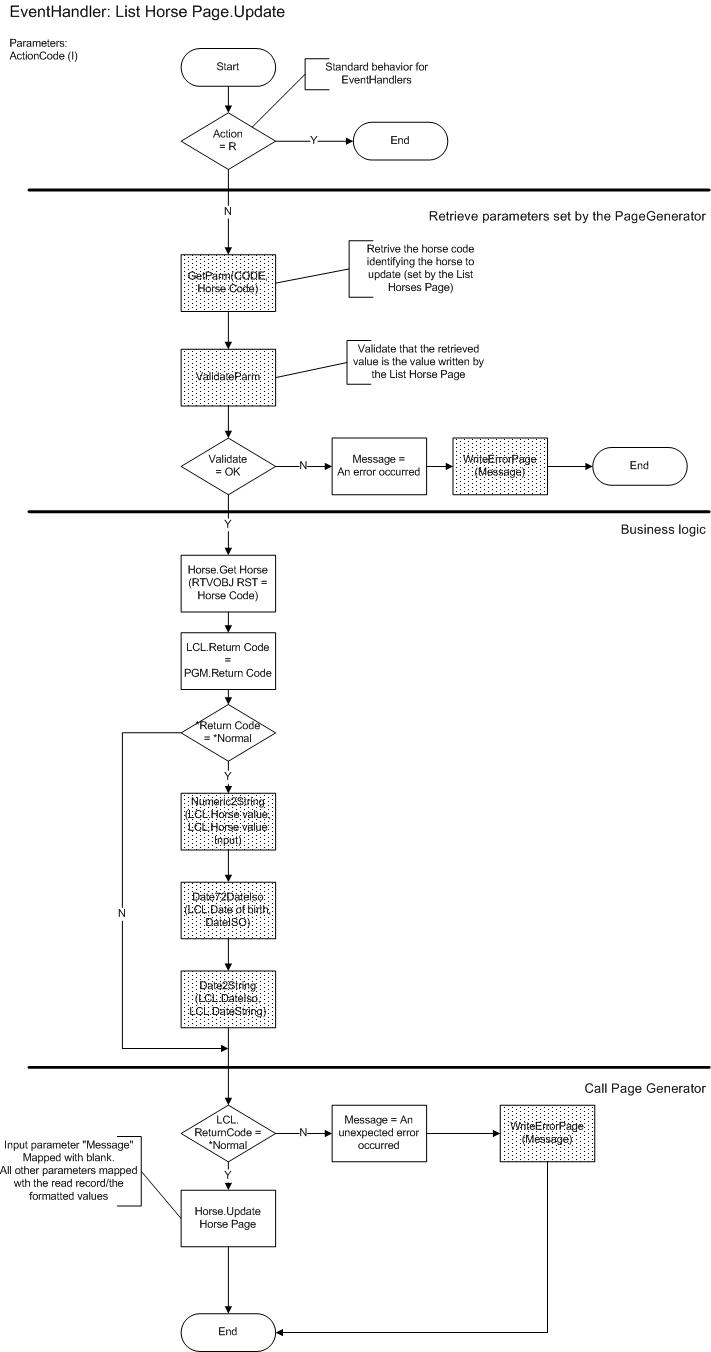

• EventHandler: List HorsePage.Update

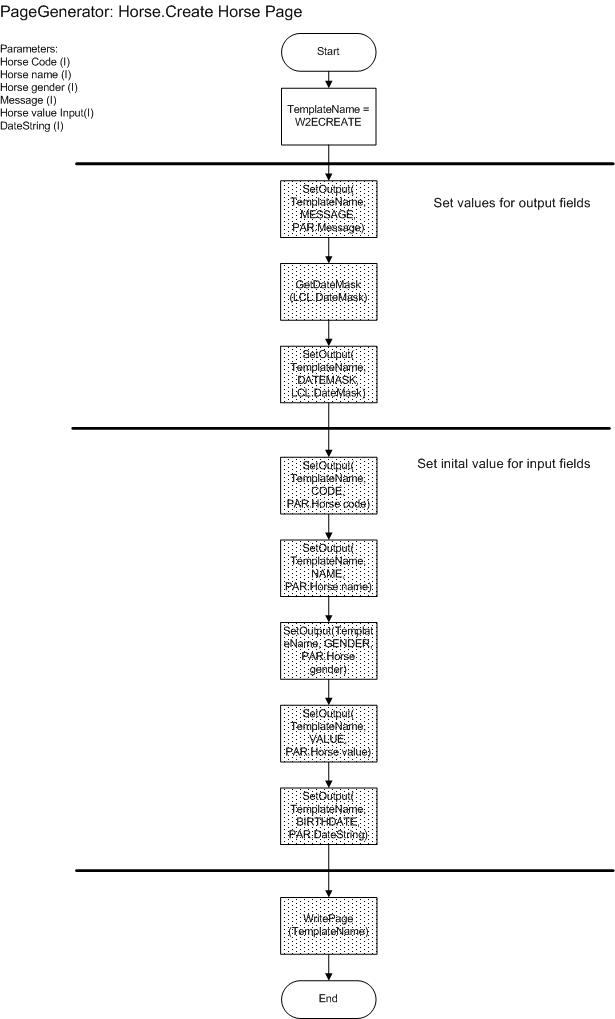

• PageGenerator: Create Horse Page

• EventHandler: Create Horse Page.Create

• PageGenerator: Update Horse Page

• EventHandler: Update Horse Page.Update

• PageGenerator: Delete Horse Page

• EventHandler: Delete Horse Page.Delete

• Service Function: Validate Horse

Comments about the Flow charts

The flow charts shown has mostly been used as a design aid / tool for communication about the functionality of the example. As such, their role could be seen as having expired with the actual completion of the example. However, we think that the flow charts offer a good overview of the different functions developed for the example - so we have chosen to present these flow charts as part of the documentation for the example.

In the diagrams, the shaded boxes shows the API functions that are delivered in the 2E model.

ProcessEntryPoint: Horse.EntryPoint Horse

PageGenerator: Horse List Horse Page

Servicefunction: Horse.LoadGrid

EventHandler: List Page.Position

EventHandler: List Horse Page.Create

EventHandler: Horse.List Horse Page.Delete

EventHandler: List Horse Page.Update

PageGenerator: Horse.Create Horse Page

EventHandler: Horse.Create Horse Page.Create

PageGenerator: Update Horse Page

EventHandler: Horse.Update Horse Page.Update



PageGenerator: Horse.Delete Horse Page

EventHandler: Delete Horse.Delete

ServiceFunction: Horse.Validate Horse
