Flow charts for 2E example

Comments about the Flow charts

The flow charts shown has mostly been used as a design aid / tool for communication about the functionality of the example. As such, their role could be seen as having expired with the actual completion of the example. However, we think that the flow charts offer a good overview of the different functions developed for the example - so we have chosen to present these flow charts as part of the documentation for the example.

In the diagrams, the shaded boxes shows the API functions that are delivered in the 2E model.

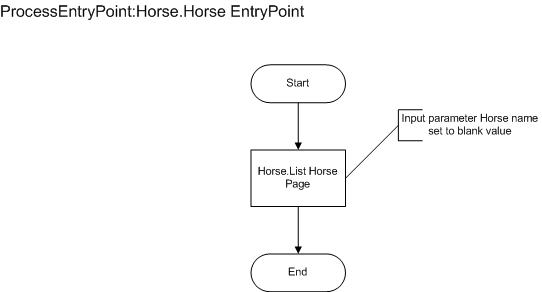

ProcessEntryPoint: Horse.EntryPoint Horse

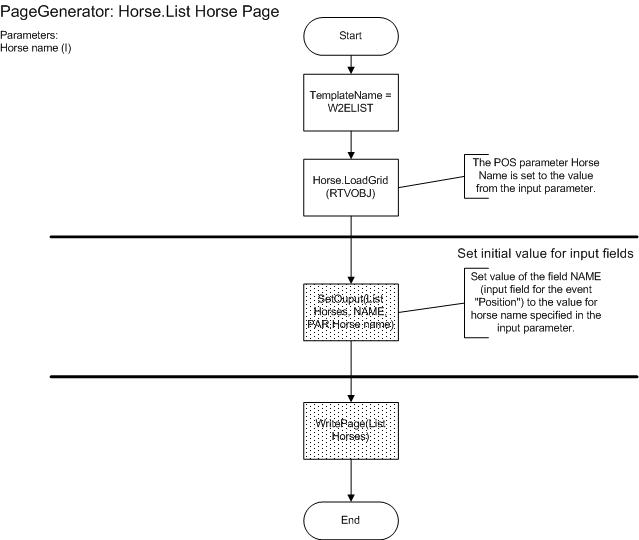

PageGenerator: Horse List Horse Page

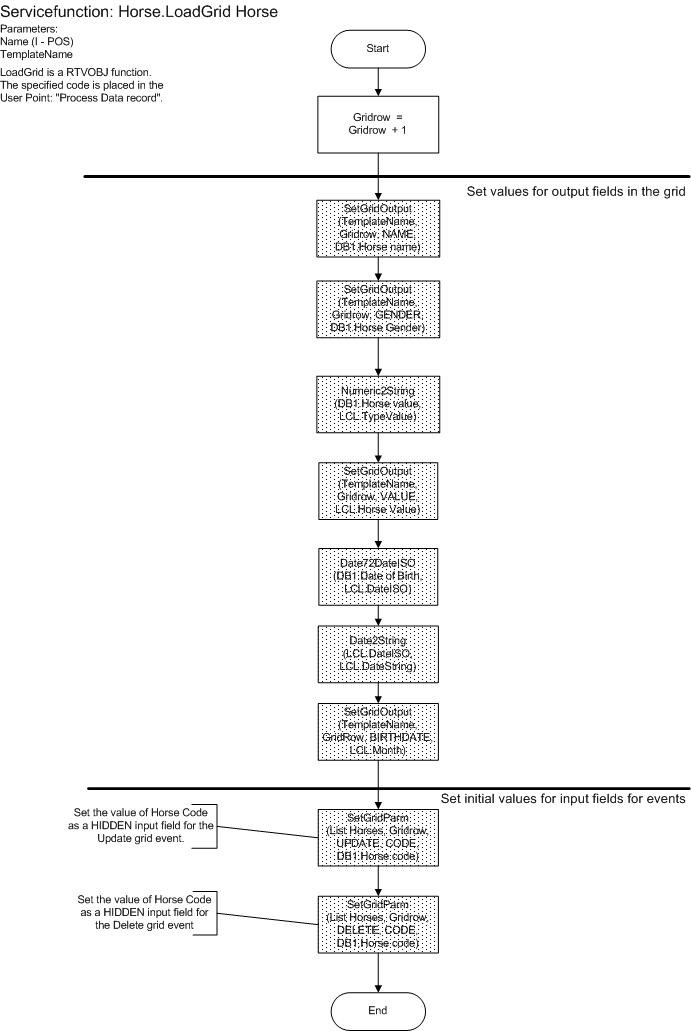

Servicefunction: Horse.LoadGrid

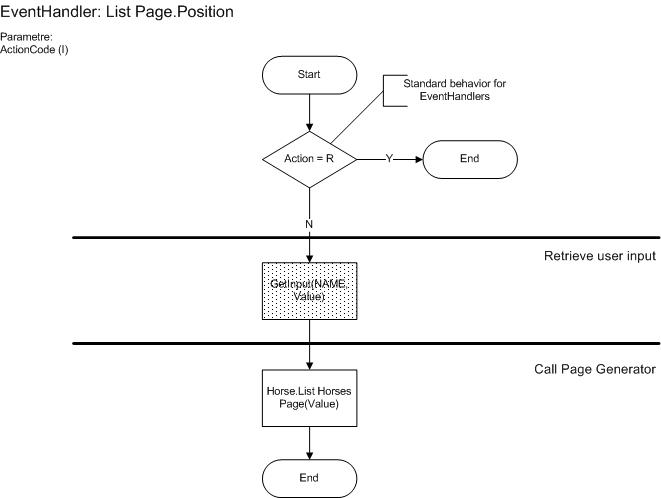

EventHandler: List Page.Position

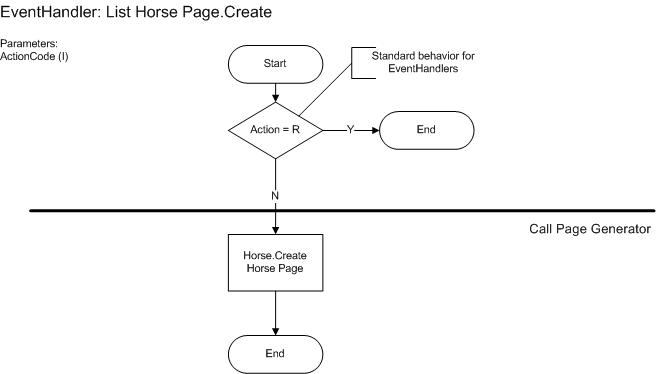

EventHandler: List Horse Page.Create

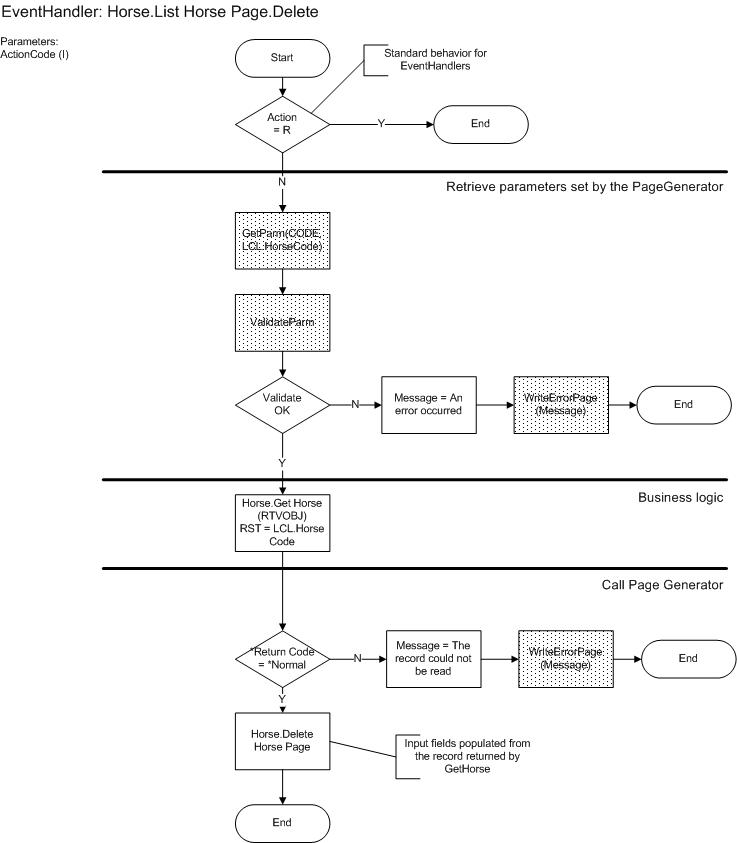

EventHandler: Horse.List Horse Page.Delete

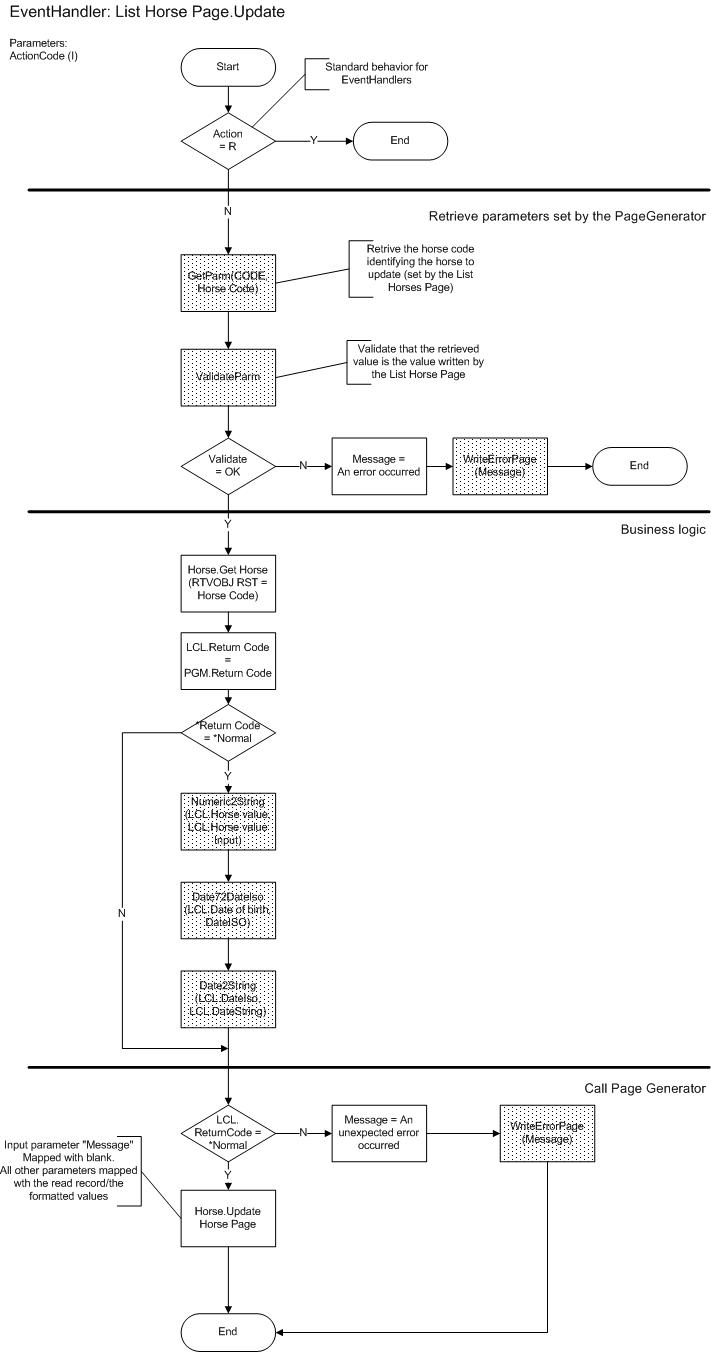

EventHandler: List Horse Page.Update

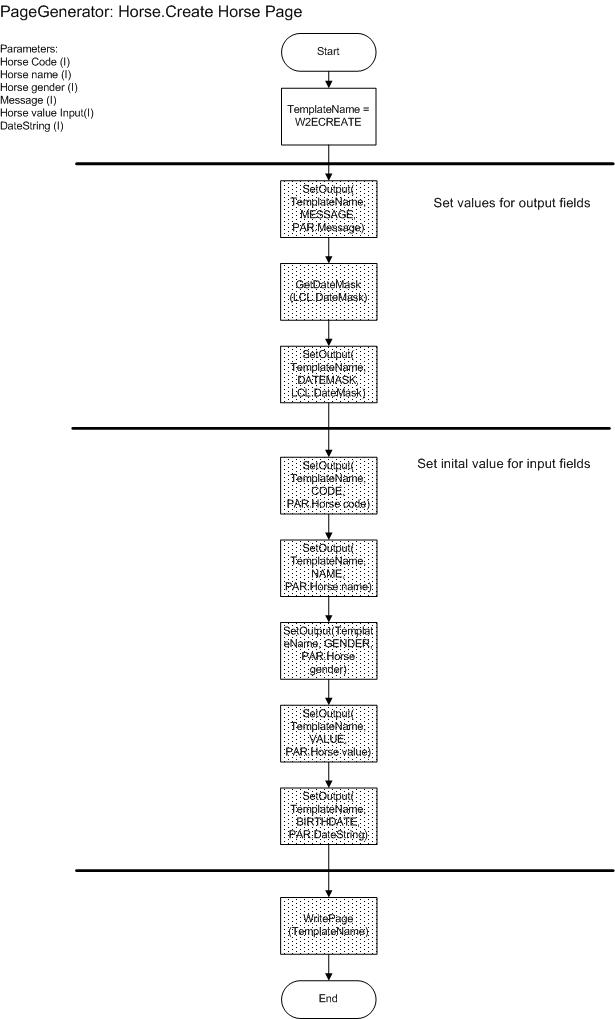

PageGenerator: Horse.Create Horse Page

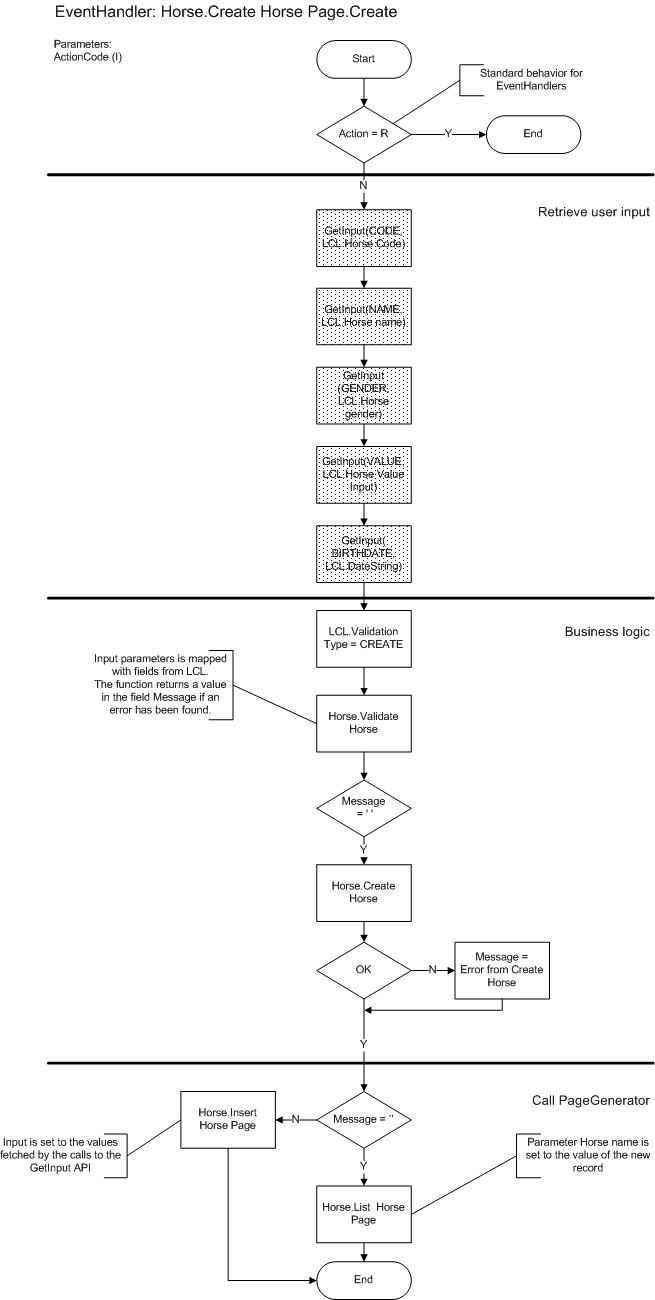

EventHandler: Horse.Create Horse Page.Create

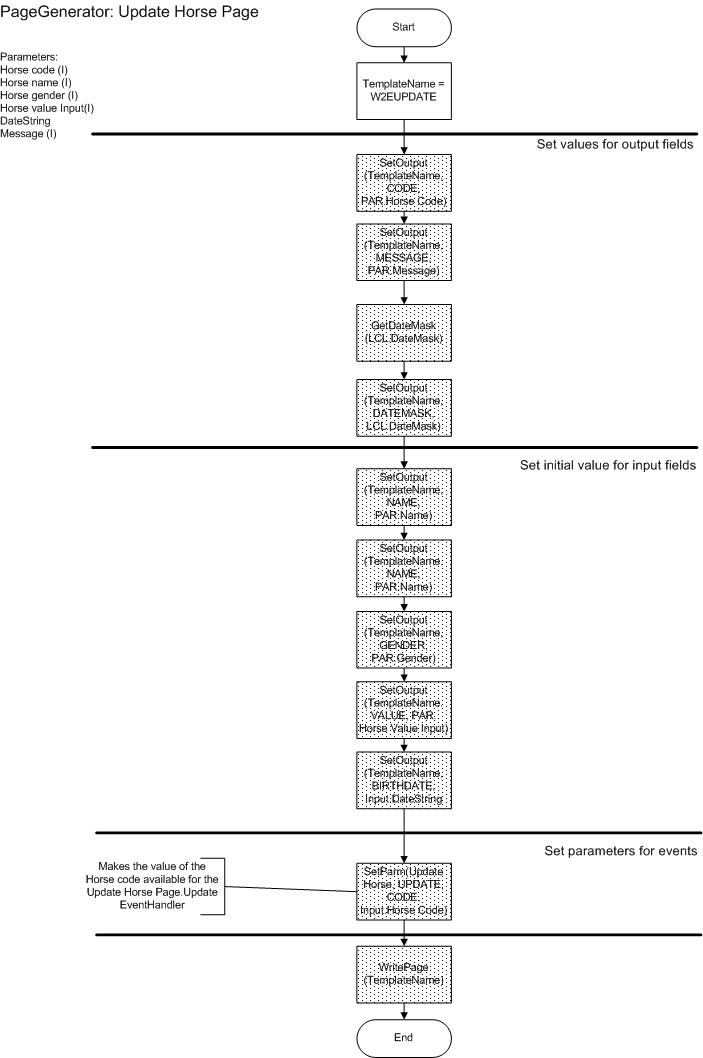

PageGenerator: Update Horse Page

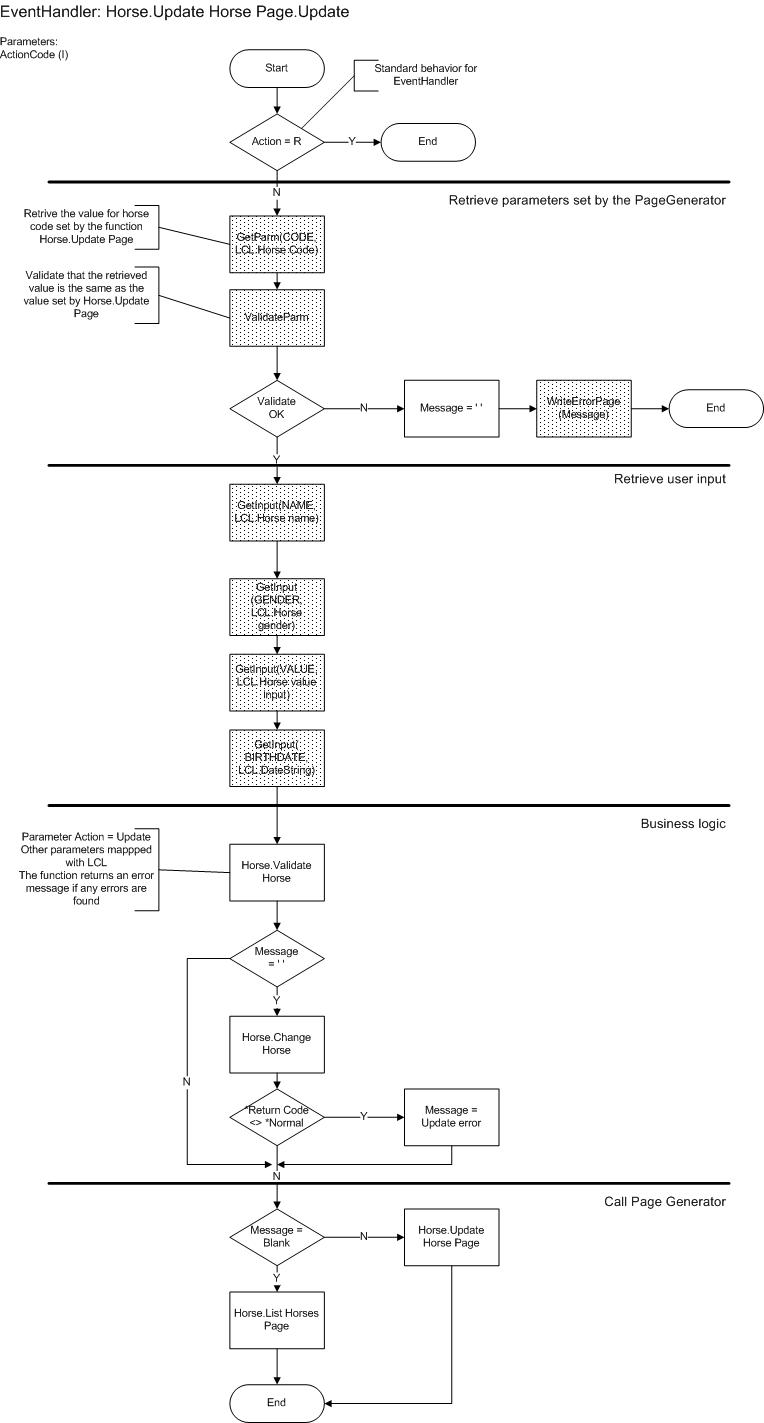

EventHandler: Horse.Update Horse Page.Update

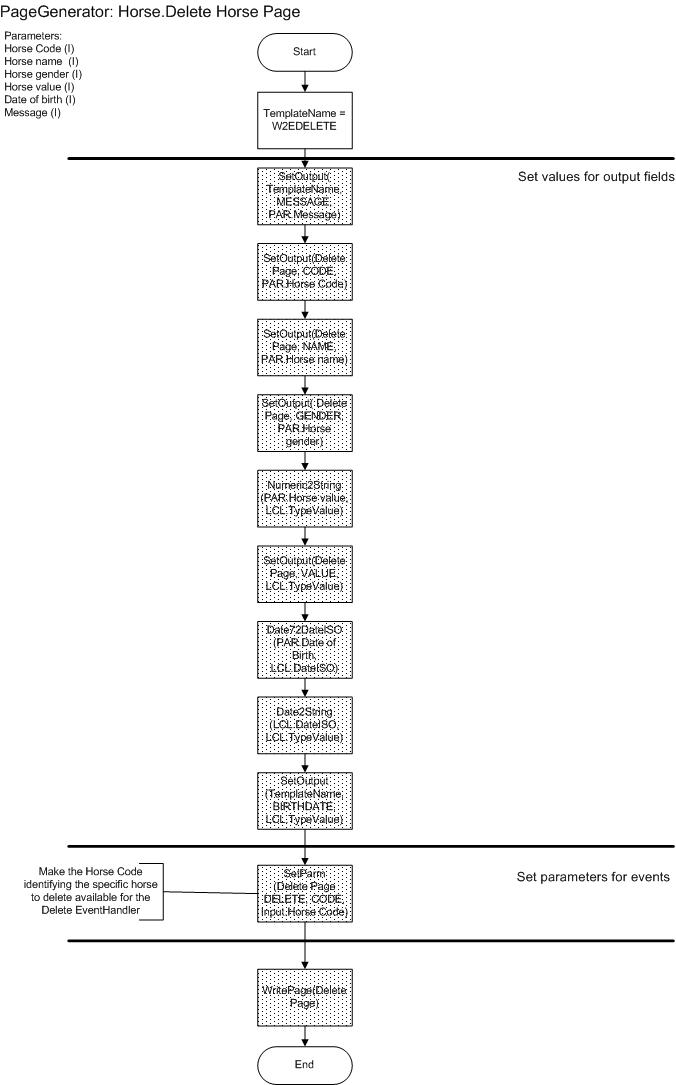

PageGenerator: Horse.Delete Horse Page

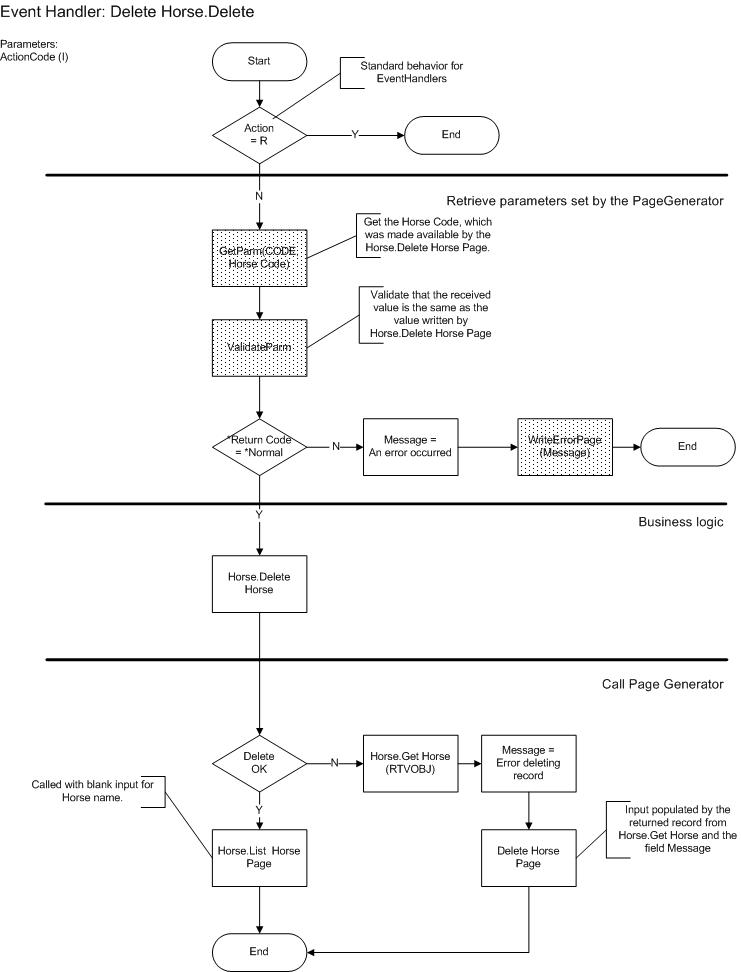

EventHandler: Delete Horse.Delete

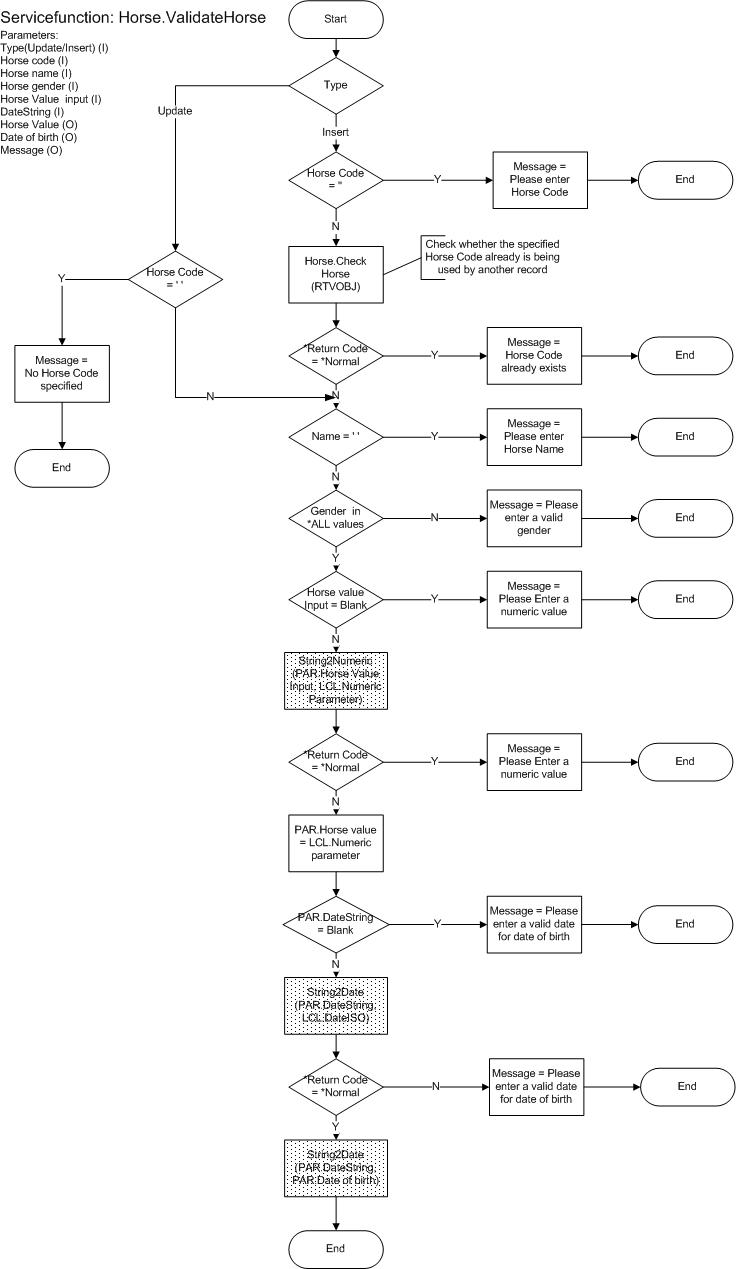

ServiceFunction: Horse.Validate Horse
