Quick installation guide for WebsydianExpress for Windows with an iSeries back-end

This guide provides everything you need to do in order to install WebsydianExpress for Windows with an iSeries back-end, quickly.

Step 1: Check prerequisites

iSeries

OS/400 version V5R3 or later
Latest Cumulative PTF package
FTP Server configured and started

Servlet Engine

A servlet engine is required to run the Websydian Web Server Component.

For iSeries we recommend installing WebSphere Express.

If planning on deploying the Websydian Web Server Component on Windows we recommend installing the Apache Tomcat servlet engine.

Read this document on how to obtain and install Apache Tomcat

Windows

WebsydianExpress supports current versions of Windows workstation and server supported by Microsoft.

The installation program also requires a connection to the iSeries using FTP.

Step 2: Obtain the latest version of the WebsydianExpress for Windows/iSeries installation program

Make sure that you have the latest version of the WebsydianExpress for Windows with an iSeries back-end installation program.

Current version and build is "WebsydianExpress v3.0.4 for Windows/iSeries"

Download WebsydianExpress for Windows

Step 3: Install WebsydianExpress components

Before continuing make sure that you have installed a Tomcat servlet engine on your system or have access to a servlet engine.

Start the WebsydianExpress installation program Express_v3.0.4_Windows-iSeries.exe. At any point during the installation feel free to press a Help button if you need further information
On the 'Welcome' page press Next
Press Next to accept the location used on your PC for objects required during installation
Read and accept the SUN license agreement and press Next
Read and accept the Websydian license agreement and press Next
On the 'iSeries Information' page enter the following information and press Next
- iSeries host name, enter the host name or IP address of your System i
- User name, enter the user profile to be used for uploading objects to your System i
- Password, enter the password of the user profile
- iSeries code page, select the codepage used by your System i
- Plex Dispatcher TCP Port, enter the TCP Port to be used by the Plex dispatcher
Press Next to accept default URL information for accessing WebsydianExpress
On the 'Regional Settings' page choose the formats you want and press Next
Press Next to accept the default settings used to start the Websydian Server
Press Next to accept the default settings used to start the Application Services
Press Next to accept the default settings for deployment of the Websydian Web Server Component Servlet
Press Install to start installation
Note! During installation you will be prompted to accept deployment of the Websydian Web Server Component to your Tomcat, pres Yes
The last step performed by the installation program is the transfer of required objects to your System i, this can be a long running task, please be patient

Step 4: Run iSeries installation program

When the transfer of objects to your iSeries have been performed the install shield will present you with the "Transfer completed" dialog.

Using Client Access logon to your iSeries with a user profile that has the authority to restore objects and create libraries and objects.
On the command line run the command call qcmd followed by pressing the F11
Add the library WXPW30INST to your library list using the command addlible

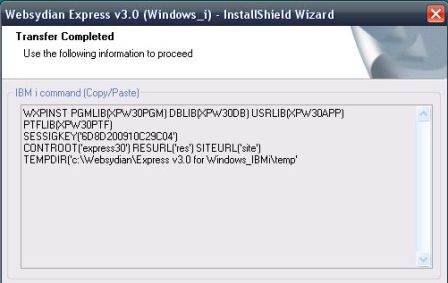

Copy and paste the "iSeries Command" lines from the dialog "Transfer complete" to the command line of your Client Access.
Execute the command WXPINST by pressing enter
Note! The installation process can be a long running task, please wait.
When installation have completed you will be presented with a success message.

Step 5: Manual deployment of the Websydian Web Server Component

Please perform the following tasks only if you where not asked to deploy the Websydian Web Server Component on your local Tomcat or if you would like to deploy the Web Server Component on another system or servlet engine.

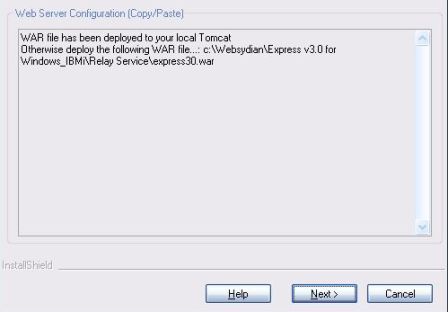

Locate the WAR file referenced in the Web Server Configuration dialog on the Transfer Complete dialog.
Deploy the express30.war file to your servlet engine following the information in the manual of the servlet engine.
Context root of the servlet should read express30

Step 6: Start the iSeries Plex Dispatcher on your System i

If you have not all ready started the iSeries Plex Dispatcher on your iSeries, please follow these steps.

The iSeries Plex Dispatcher objects are located in the WebsydianExpress program library, default named WXPW30PGM.

Create a new user account named YOBSYDIAN
This user profile will be used to start the iSeries Plex Dispatcher.
Make sure that the newly created user have the following authorization
- *USE authority for each iSeries user profile that will be initiating a client connection request.
- *USE authority for the objects QSYS/QSYGETPH and QSYS/QSYRLSPH
To start the iSeries Plex Dispatcher run the following command
- SBMJOB CMD(CALL (PGM(WXPW30PGM/YOBSYTCPDP) PARM('port_number')) JOB(YOBLISTEN) JOBD(WXPW20DB/EXPRESS) JOBQ(QGPL/QINTER) USER(YOBSYDIAN)
  Where port_number is replaced by the port selected on the "iSeries information dialog" during installation, default is 3861
  Location of program and job description might be different from the default settings, if in doubt check the InstallFinish.htm document for information on the installation.

Further information on the Plex iSeries Dispatcher (Chapter 6: iSeries Components - Configuring the AllFusion Plex TCP/IP Environment),

Step 7: Start WebsydianExpress

The installation program have created a number of shortcuts in your Windows start menu

In order to start the WebsydianExpress select the menu short cut "Start WebsydianExpress" under the Websydian -> WebsydianExpress v3.0 for Windows and iSeries sub menu.

Please note when starting WebsydianExpress for the first time you will be asked to enter user and password for the iSeries connection. Make sure that you save user and password settings by checking the required check boxes.

Step 8: Access the WebsydianExpress demosite and administration interface

After starting WebsydianExpress the available sites can be accessed by entering the following web address in your browser:

http://<YourHostName>/express30/site/demosite

Make sure that you replace the '<YourHostName>' with the host name of your computer

The web address used in this example is based on the default settings used by the installation program.

In order to access the administration part of the demosite append /admin to the url

http://<YourHostName>/express30/site/demosite/admin

Make sure that you replace the '<YourHostName>' with the host name of your computer

Stopping WebsydianExpress

The installation program have created a number of shortcuts in your Windows start menu

In order to start the WebsydianExpress select the menu short cut "Stop WebsydianExpress" under the Websydian -> WebsydianExpress v3.0 for Windows and iSeries sub menu.

Obtain a license for the Websydian Server

By default the WebsydianExpress is installed with an unregistered license of the Websydian Server providing 10 concurrent sessions.

You have the option to obtain a registered version for 10 concurrent sessions for free that enables you to find a starting point on the number of concurrent sessions required by your applications.

For pricing on concurrent sessions please contact info@websydian.com.

Uninstalling the WebsydianExpress

The following are the steps to complete in order to completely remove WebsydianExpress v3.0 for Windows from your system

In the Tomcat directory locate the webapps directory and remove the express30.war file
In the program files directory locate the directory Websydian and delete the directory named "Express v3.0 for Windows and iSeries"
On you iSeries locate and delete the libraries WXPW30*

Troubleshooting WebsydianExpress Installation

If you are having problems installing WebsydianExpress please contact Websydian support at support@websydian.com and attach the following information:

The InstallFinish.htm document generated by the installation program.
The Websydian Server log file.
To locate the Websydian Server log file go to the directory where you installed the WebsydianExpress, and open the subdirectory Websydian Server\logs.
The Web Server Component log file, which is located on your web server in the directory specified during installation.
To locate your Web Server Component log file open the InstallFinish.htm document, go to the "configuration sheet" section and locate the value for "Web Server Component Log file".
