UserManagement Pattern Example


Below is shown the triple definitions that are necessary to implement the basic User Management functionality.

File and implementation names have not been specified for the Page Generator and Event Handler web server functions.

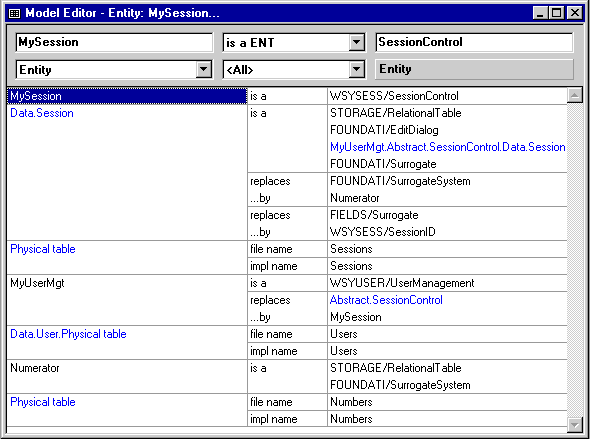

Entity and Table Definitions

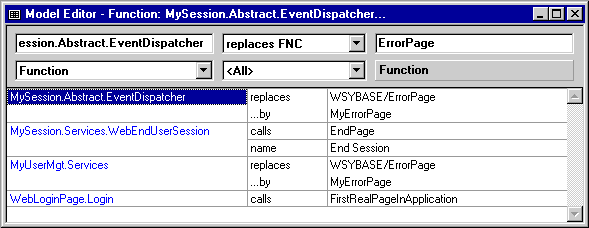

Scoped Functions Definitions


The calls-triples are specified by adding calls-statements in the action diagrams.

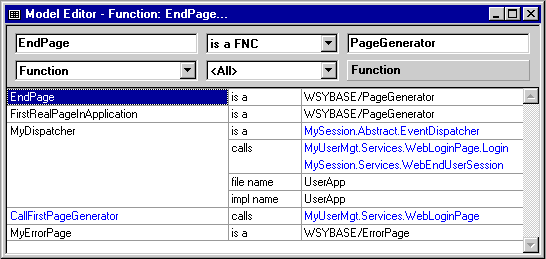

Unscoped Functions Definitions


The calls-triples are specified by adding calls-statements in the action diagrams.
