Websydian v6.1 online documentationOnline documentation - WebsydianExpress v3.5

Quick Text

Introduction

Quick Text is an example for WebsydianExpress showing some of the more advanced ideas of Websydian and WebsydianExpress development. The idea of Quick Text is to enable you to add customizable text to any page in your WebsydianExpress site and allow specific users to edit these texts using a WYSIWYG editor (TinyMCE).

Some examples could be:

In order to setup Quick Text you will need a basic understanding of HTML and WebsydianExpress along with the idea of dynamic PageGenerators and menu services.

A set of HTML templates are provided to show you the different possibilities.

Support

Quick Text is delivered "as is". We do not provide support for usage, configuration, your further development of it etc. You will be able to download the Plex model below for changes and you are of course welcome to suggest any improvements to Quick Text.

Currently Quick Text runs under WebsydianExpress v3.0.2 and later.

Getting started

Installation

  1. Before proceeding make sure you are running WebsydianExpress v3.0.2 or later
  2. Download the Quick Text zip file that suites your variant of WebsydianExpress:
  3. Expand the content of the ZIP file to a location on your disk.
  4. Copy the content of the library html to your WebsydianExpress html library.
  5. Depending on your variant of WebsydianExpress deploy the runtime objects by:
  6. In the WebsydianExpress administration interface proceed to the Maintain Site Structure
  7. Select the root element of your site structure and press the import button
  8. Select the QuickText_Import_File.txt file located in the zip file directory then press upload and press import to get the required information into your site.
  9. Create a new folder named QuickText pointing to the html directory created in step 4 use the resource location, css and js files of your site.
  10. Add the new folder to your folder lists at the bottom of each folder list.

Configuring the Quick Text Examples

Add the Quick Text examples to your site

  1. In the Maintain Site Structure select a menu loader of your site and add the three examples menu items supplied with Quick Text
    1. Press Add -> Select "Refer existing site element" -> Press Next
    2. Search for Quick -> Select Quick Text Example 1 -> Select a sequence and frame -> Press Finish
    3. Perform the above two steps for each Quick Text Examples supplied

Who is allowed to edit

  1. By default you are only allowed to edit the Quick Text elements if you have the Administrator role, in order to change the roles for editing do the following:
    1. In the Maintain Site Structure expand the Quick Text element scoped to your site root.
    2. Select the element Quick Text Editors and press Roles -> Add or remove the roles to reflect your requirements and press Apply

Check out the examples

  1. Go to your site and locate the menu where you added the Quick Text examples
  2. Select one of the Quick Text examples
    You should see a blank page no text available.
  3. Now login with a user having the correct set of roles for editing Quick Text elements
  4. Now select one of the Quick Text examples
    You should see one or more edit buttons on the right hand of your display.
  5. Press the edit button

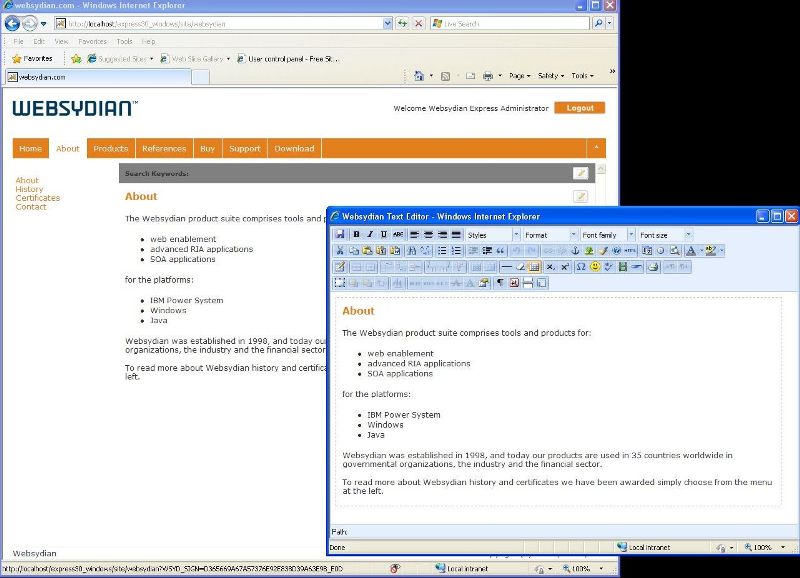

    You should now see a new window giving you a WYSIWYG editor
  6. Add some text and press the top most left hand side button (The save icon) and press the close icon at the top of the window.
    The text entered should appear on the screen.

Background

Quick Text consist of the following components

The dynamic PageGenerator (WSSTCDC) - Show Quick Text element and allow editing if authorized

This is the main component of Quick Text this is the dynamic PageGenerator you can add to any page in your WebsydianExpress application.

To do this add the following code to the page:

<div id="info">
    /(CHILDFNC-WSSTCDC?WSST01=GeneralInfo&WSST03=info)
</div>

The above code show that we want to place a DIV section called info. The file that the business process is to retrieve (and save) text from is called GeneralInfo.htm. We must also tell the business process the name of the DIV. This is needed, at the editor will,  every time the user clicks the Save button, update the text in this DIV.

The dynamic child pagegenerator WSSTCDC have the following parameters:

Field Optionally Description
WSST01 Mandatory Name of the file that the text will be read from and saved to on the application server.
WSST02 Optional Suffix for the templates that displays the text and the editor itself. Can be used to overwrite behavior of display and editing. See Quick Text example 3
WSST03 Optional Identification of the DIV where the text is displayed. Used for the WYSIWYG editor to automatically update the content on the page being edited without having to refresh the page.
WSST04 Optional Suffix for name of file that the text will be read from and saved to on the application server.
Please note.

The purpose of the field WSST04 is, that when you use a child replacement marker ( /[field name] ) then it is not possible to concatenate a constant or another field to the first one. Take a look at this example where we what to take the value in the field WS5yc6eA and concatenate the constant _wholesale:

<!-- This will not work! -->
/(CHILDFNC-WSSTCDC?WSST01=/[WS5yc6eA]_wholesale&WSST03=info1)

Instead you must use the WSST04 field like this:

/(CHILDFNC-WSSTCDC?WSST01=/[WS5yc6eA]&WSST03=info1&WSST04=_wholesale)

Below is an example where the text is displayed in a box on the page:

<div id="terms" style="background:#FFFEEC; width:100%; position:relative; float:none; padding:2px; margin-bottom:10px; border:1px solid #FFD682;">
/(CHILDFNC-WSSTCDC?WSST01=Terms&WSST03=terms)
</div>

You can design the DIV section as you like to have the text shown nicely.

The PageGenerator (WSSTCEP) - Show and handle Quick Text editor

This is the PageGenerator handling the displaying of the editor to be used and allow editing and saving of the Quick Text element.

The PageGenerator (WSSTCP) - Show a page with Quick Text elements

This PageGenerator is part of a business process that enables you to add pages to your WebsydianExpress site where you would like to allow editing of standard pages with text.

These pages could be Contact or About pages where you would allow users to change the content without having to open the HTML file of your site.

Where are the Quick Text elements saved

The Quick Text elements are all saved as files on your application server in the library Static located in your html library of your WebsydianExpress instance.

Obtaining the model

Model is included in the zip file downloaded in the library model.
