Cleverpath Portal Implementing

Introduction   Implementing    Parts   Other Uses

This implementation page shows how to use the WsyPortal pattern in a Websydian application. It may be a help to take a look at the Parts page before reading this installation guide.

Requirements

The following components are needed in order to connect to Jasmine using the WsyPortal pattern:

Installation Without User Management

The Cleverpath Portal Developer is comprised of two parts: a java-class (WebsydianConnectionPortlet.class) that resides in the classes-folder in the Portal installation, and the WSYPORTAL pattern. Below the necessary steps for setting up a Websydian content application in Cleverpath Portal are described.

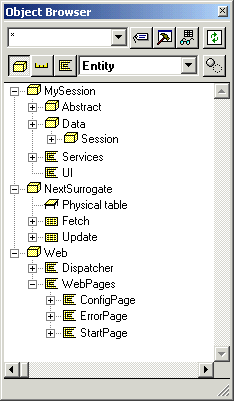

It is assumed that the AllFusion Plex model includes a Session Management entity, a Dispatcher function, and two Page Generators, each with an Event Handler that calls the other Page Generator. The structure is shown on the figure to the right.

Further instructions on how to implement Session Control can be found here.

Very few changes to the model is needed in order to make it ready to interact with Cleverpath Portal.



Inherit from the JasminePortalSession Pattern

MySession needs to inherit from the JasminePortalSession pattern in the WSYPORTAL library:

MySession is a ENT
is a ENT
SessionControl
JasminePortalSession

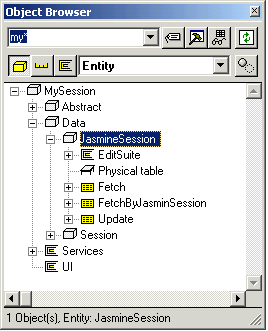

The local MySession entity will now scope the pattern to implement Cleverpath Portal Integration for the application. On the figure to the right MySession is shown with the scoped inherited JasmineSession entity. Below is shown that the JasmineSession entity per default only contains the fields SessionID and JasmineSession.

If running on a relational database, you need to declare the JasmineSession entity as a RelationalTable


MySession.Data.JasmineSession is a ENT RelationalTable



The Dispatcher should inherit from MySession.Abstract.EventDispatcher, in order to use both standard Session Management and the inherited Cleverpath Portal Integration functionality add the following tripple:

Web.Dispatcher is a ENT MySession.Abstract.EventDispatcher

 Furthermore, it is necessery to replace the abstract function CreateSession with the local CreateSession:

MySession.Abstract.Dispatcher replaces
...by
SessionControl.Data.Session.Update.CreateSession
MySession.Data.Session.Update.CreateSession

Generate and build:

Web.Dispatcher,
Web.Dispatcher.CallFirstPage
MySession.Data.JasmineSession and scoped functions

The application should now be ready to connect to Cleverpath Portal.

Installation With User Management

Furthermore it is assumed that the model includes a User Management entity named MyUserManagement.

Inherit from the JasminePortalUser Pattern

MyUserManagement needs to inherit from the JasminePortalUser pattern in the WSYPORTAL library. Also, it is necessary to replace the inherited abstract SessionControl with MySession:

MyUserManagement
is a ENT
replaces
...by
JasminePortalUser
Abstract.SessionControl
MySessionControl

 If running on a relational database, you need to declare the JasmineUser entity as a RelationalTable

Inherit from the JasminePortalSession Pattern

MySession needs to inherit from the JasminePortalSession pattern in the WSYPORTAL library.

MySession is a ENT MyUserManagement.Abstract.SessionControl

 If running on a relational database, you need to declare the JasmineSession entity as a RelationalTable

The Dispatcher should inherit from MySession.Abstract.EventDispatcher, in order to use both standard Session Management and the inherited Cleverpath Portal Integration functionality add the following tripple:

Web.Dispatcher is a ENT MySession.Abstract.EventDispatcher

 Furthermore, it is necessery to replace the abstract function CreateSession with the local CreateSession:

MySession.Abstract.Dispatcher replaces
...by
SessionControl.Data.Session.Update.CreateSession
MySession.Data.Session.Update.CreateSession

Open MySession.Abstract.Dispatcher in the Action Diagram Editor.
Find the call to MySessionControl.Data.Session.Update.UpdateRow and clear the mapping for the dual parameter UpdateData<UserLoginName>
Add the variable MySession.Data.Session.Fetch.SingleFetch to UpdateKey.
Press Default Mapping. Now all parameters should be mapped properly.

Generate and build:

The application should now be ready to connect to Cleverpath Portal.

WebsydianConnectionPortlet Component Setup

Below the necessary steps for setting up the Websydian application with Cleverpath Portal are described.

Installing the WebsydianConnectionPortlet Component

Installation of WebsydianConnectionPortlet component is extremely simple. All that needs to be done is copying the WsydPortal.jar  file into the folder named classes (found in the root directory of the Portal installation).  If another location is desired, it is necessary to add that location to the Cleverpath Portal class path (please consult the Cleverpath Portal Documentation for details).

Installing the Websydian Cleverpath Portal Collection

The Websydian Cleverpath Portal Collection contains default configuration files and error messages. Copy the files  WebsydianApplication.config and WebsydianApplication.error into the root directory of the Cleverpath Portal Installation.

Setting up the application from Jasmine

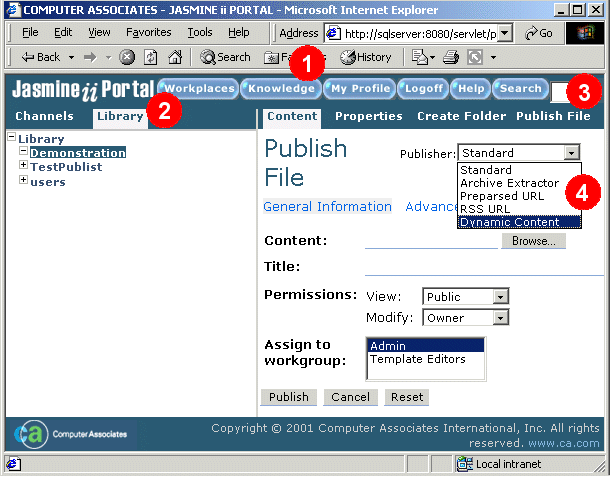

Log into the portal as administrator. Click Knowledge (1), Library (2), Publish File (3), and select Dynamic Content (4) as shown on the figure below.

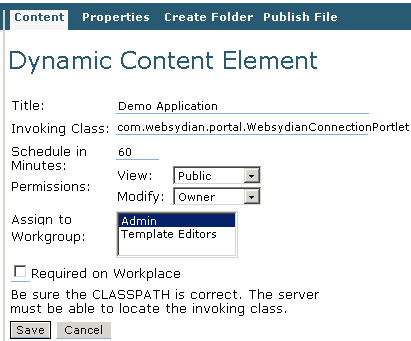

When Dynamic Content is selected, Jasmine automatically shows a configuration screen for the new element. Enter an appropriate title, and the name of the invoking class, i.e. WebsydianConnectionPortlet as shown on the figure.

For the purpose of demonstrating the set-up of the connection between Jasmine and Websydian the other settings on the figure can be left unchanged. Please consult the Cleverpath Portal Documentation for details on  the remaining options.

Save the configuration by pressing Save.

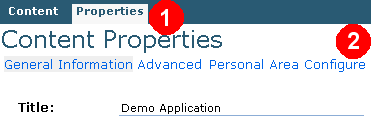

The new entry in the library will now appear on the list. Click on the name. WebsydianConnectionPortlet  will show an error message, as the application (obviously) has not been configured yet. Ignore the error message and select Properties (1), then Configure (2) as shown on the figure.

The default WebsydianConnectionPortlet configuration page now shows.

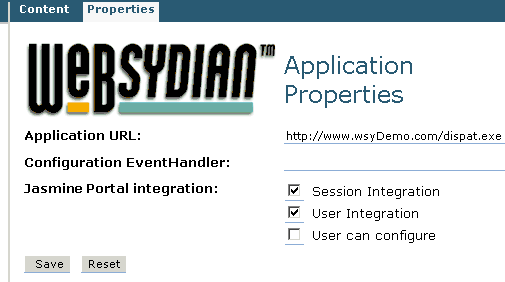

Type the URL to the dispatcher, e.g. as shown above. Check Session Integration to make WebsydianConnectionPortlet pass the Jasmine Session ID to the dispatcher.

Press Save to save the configuration. If the Application URL has been specified correctly, the Websydian application will now be called.

The Websydian application has now been connected to Cleverpath Portal.

For more information on the options User Integration and User can configure see Other Uses.
