PaymentWebShop Parts
Introduction Implementing
Other Uses Parts
This document describes the objects of the Websydian PaymentWebShop pattern.
PaymentWebShop inherits from WebShop and extends WebShop with entity
attributes, functions and changes to functions concerning online payment. Refer to the WebShop
Parts section for a description of the objects inherited from WebShop.
The following abstract entities are defined:
- The CreditCardTemplate abstract entity is a template for
a collection of common credit card data fields. If the fields of the
template matches the credit card fields of the payment gateway
protocol, it is convenient to use the Fetch-view of CreditCardTemplate
to populate the webinput variable of SendToExternalServer Event
handler functions.
- The PaymentGateway abstract entity is an inheritance
placeholder for the ExternalServerControl pattern. PaymentGateway.Data.Application is ancestor
of the
Shop entity.
In PaymentWebShop the Shop
entity has been extended with fields to control exchange of events
with a payment gateway.Furthermore, the Shop
entity inherits from
PaymentWebShop.Abstract.PaymentGateway
and through this inheritance it is ensured that the correct Shop
instance is loaded when pages with external events is generated.
The following page generators and event handlers are defined in order
to support online payments verified by a payment gateway:
- The Web.Ordering.Submit Payment function is a
PageGeneratorWithExternalEvent function. The OK
event handler models the external event that is sent to a payment
gateway when the web user accepts to pay for the purchase.
- The Web.PaymentGateway.LoadOkPage function is a
ReceiveFromExternalServer event handler. When activated, it
calls the Order Confirmation for User or Order
Confirmation for Visitor page generator, depending on whether a
registered user has logged in or not.
- The Web.PaymentGateawy.LoadErrorPage function is a
ReceiveFromExternalServer event handler. When activated, it
calls the Web.Ordering.Payment Error page generator.

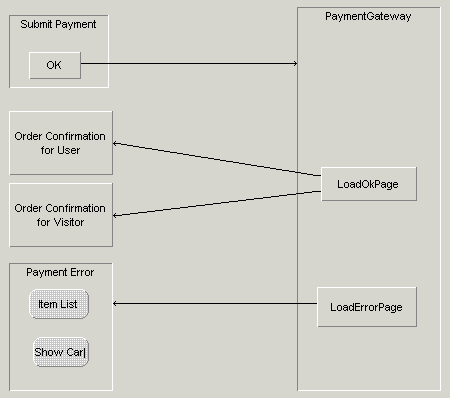

The workflow diagram of the payment process is illustrated below:
Payment Workflow Diagram
The call from Submit Payment.Ok to PaymentGateway is not
strictly within the model, as the Ok event is invoked as an external server
event rather than as a normal, application-internal event.
