Starting iSeries Application Service

• Introduction

• Prerequisites

• Fill out the Configuration Sheet

• Starting the iSeries Application Service

• Verifying the iSeries Application Service

• Tuning the iSeries Application Service

• Troubleshooting the iSeries Application Service

Introduction

This document describes how to deploy, tune, and troubleshoot the Application Service for iSeries.

Please note that this document regularly is subject to changes.

It is required that the user deploying the iSeries Application Service has knowledge of the iSeries. Especially with reference to job management.

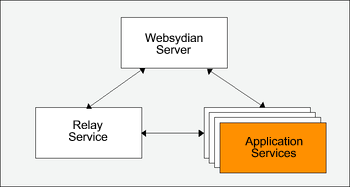

The Application Service is the component of the Distributed Websydian Architecture that is created by the developer in the Plex development environment. Further information on the Application Service can be found in this document.

Prerequisites

In order to start the iSeries Application Service  a number of issues have to be addressed. Please make sure the following prerequisites have been performed or verified.

OS/400 software

Make sure that OS/400 V5R1 or later with the latest cumulative PTF package is installed, contact IBM for information pertaining the latest cumulative PTF package.

Make sure that the following OS/400 software features have been installed on the iSeries

• OS/400 - QShell Interpreter
• IBM Developer Kit for Java (5722JV1 - Base)
• Java Developer Kit 1.4 or later with latest group PTF package. (5722JV1 - Option  6)

Information pertaining installed software features can be listed by issuing the command

Plex runtime objects

Make sure the Plex runtime objects are installed on the iSeries. Consult the Plex manual on how to install the Plex runtime objects for iSeries.

Websydian runtime objects

Make sure the Websydian runtime objects are installed, including the latest PTFs on the iSeries including the java runtime files for the DWA environment which are to be placed in the integrated file system (IFS).

For further information on installing the Websydian runtime on the iSeries read this document.

Websydian Server deployed and running

Make sure that the Websydian Server has been deployed and is running.

For further information on deployment of the Websydian Server go to the main page of the DWA Deployment Guides.

Fill out the Configuration Sheet

All deployment guides are based on information found in the Configuration Sheets, make sure to print and fill out the configuration sheet for deploying the Java Application Service on iSeries.

The bullet numbers, e.g. , found in this document refers to the Configuration Sheet.

Starting the iSeries Application Service

Check and set data areas

Before starting the iSeries Application Service a number of data areas need to be checked for the correct information. The data areas are supplied with the Websydian iSeries runtime objects with the default settings, it is recommended to copy these data areas to the library of the application.

The data areas and there content are:

	Dataarea	Description	Default value
	CGIICCSID	The codepage used to translate incoming URL encoded information. Often not changed.	00819 (ISO-8859-1)
	CGIOCCSID	The codepage used to translate outgoing URL encoded information. Often not changed.	00819 (ISO-8859-1)
	IFSCCSID	The codepage used to translate the document templates located in the integrated file system on the iSeries.	01252 (Windows Latin-1)
	WSYDDATMSK	Date mask used when transferring date fields from input.	yyyy/mm/dd
	WSYDDECSEP	Decimal separator used when transferring numeric fields from input.	. (dot)
	WSYDPATH	Path identifying the location of the document templates.	/WSYD600/TEMPLATES/
	WSYDTHUSEP	Thousand separator used when transferring numeric fields from input.	, (comma)
	WSYDTMEMSK	Time mask used when transferring time fields from input.	hh:mm:ss
	WSYDTMSMSK	Timestamp mask used when transferring timestamp fields from input.	yyyy/mm/dd hh:mm:ss

Use the WRKDTAARA command to get a list of the available data areas and the option to change them.


Create or check the job description to be used

Make sure that a job description is available in order to start the Application Service. We recommend copying the job description WSYDJOBD located in the Websydian runtime library to the library of the application.

Make sure that the job description has the following libraries in the initial library list, adding all other libraries that the application may require.

• QTEMP
• [AppLibrary]
• WSYD600PTF
• WSYD600
• [PlexLibrary]

Replacing the [AppLibrary] by the name of the library of the application and the [PlexLibrary] by the name of the library containing the iSeries Plex runtime objects.

Make sure that the user specified in the job description is correct, *RQD is not allowed.

Copy Document Templates to the iSeries

Create the directory specified and copy the document templates used by the Application to the iSeries IFS, using the location from the configuration sheet and entered in the data area wsydpath..

Start the Application Service

The iSeries Application Service is started by issuing the command STRAS which is located in the Websydian runtime library.

Add the Websydian runtime libraries to the library list, making sure that the library WSYD600PTF is located before the library WSYD600.

Submit the iSeries Application Service using the STRAS command followed by F4.

                       Start Application Service (STRAS)

 Type choices, press Enter.

 Application Service Listener . .  MyAppSvc      Character value
 Websydian Server IP Address  . .  hostname
 Websydian Server TCP Port  . . .  8189          Number
 Application Service IP address    hostname
 Application Service TCP port . .  11001         Number
 Number of Application Services .  1             Number
 Service name . . . . . . . . . .  SVCNAME
 Job name . . . . . . . . . . . .  WSYDASPP      Character value
 Job description  . . . . . . . .  WSYDJOBD      Name
   Library  . . . . . . . . . . .     WSYD600     Name
 Job queue  . . . . . . . . . . .  QINTER        Name
   Library  . . . . . . . . . . .     QGPL        Name
 Init library list  . . . . . . .  *JOBD         Name, *CURRENT, *JOBD...
 User . . . . . . . . . . . . . .  *CURRENT      Name, *CURRENT, *JOBD


                                                                         Bottom
 F3=Exit   F4=Prompt   F5=Refresh   F10=Additional parameters   F12=Cancel
 F13=How to use this display        F24=More keys


Verifying the iSeries Application Service

After starting the Application Services verify that they are started and have reported information to the Websydian Server.

Using the command WRKLNK you are able to view the log file of the Websydian Server

Select option 5 in front of the wsydsrv.log file for view and press enter.

 Edit File: /websydian/WSYD600/logs/wsydsrv.log
 Record :       1   of       3 by   8            Column :   30     99 by  74
 Control :

CMD 3....+....4....+....5....+....6....+....7....+....8....+....9....+....0....
    a**************
 ead-0:INFO] - License info: Websydian Server Unregistered Basic expires at 'Ne
ead-0:INFO] - DWA protocol: Version 2.1.
ead-0:INFO] - Waiting for connection on 192.168.102.20:41130...
ead-0:DEBUG] - Receiving...
ead-2:DEBUG] - Got packet...
ead-2:DEBUG] - Got PUTTOKEN...
ead-2:DEBUG] - PUTTOKEN - svcname:EXPRESS timeout:30 sessname:WSYD_SID ipaddr:1
ead-2:INFO] - Token received. Service name: DWAWSYDAPP, IP Address: 192.168.102
    ***************











 F2=Save   F3=Save/Exit   F12=Exit   F15=Services   F16=Repeat find
 F17=Repeat change  F19=Left  F20=Right

Input 30 in column and press enter.

The log file shows all communication with the Websydian Server, note this is only the case when log level is set to TRACE. Make sure that the log holds information about the packages PUTTOKEN identifying all Application Services started. Please note that the log information above is an example.

If the information is not in the log file or the log file is not present please proceed to the Troubleshooting the iSeries Application Service section of this document.

Tuning the iSeries Application Service

The process of tuning the iSeries Application Services follows normal guidelines of tuning programs on the iSeries.

For information on getting the best performance of the entire deployed DWA Application please read this document.

Troubleshooting the iSeries Application Service

When troubleshooting the iSeries Application Service check for  the following:

1. Make sure that the job has been submitted and is not waiting in the job queue.

2. Check if the job has ended successfully or abnormally. This can be checked by viewing the messages of the user submitting the job.

   Use the command DSPMSG to view the messages of a particular user.


   ===>DSPMSG <username> [Enter]



3. If the job is not active, or has ended abnormally, or successfully check the output queue QEZJOBLOG for any spool files pertaining the job running the iSeries Application Service.


   Use the command WRKOUTQ to view the contents of the output queue QEZJOBLOG

   ===>WRKOUTQ QEZJOBLOG [Enter]



The joblog created by the iSeries often shows the reason for the end of the iSeries Application Service. This is a list of the most common errors:

Job Description error, user not correct, library list incorrect etc.

Change the job description used and start the iSeries Application Service again.

The iSeries Application Service reports a Websydian error message

A complete list of possible errors are located here, for the most often seen errors see below:

• Error code 48 - Socket Bind Failed, indicates that the Application Service was unable to start listening to the TCP port or IP address specified. Correct the problem and try starting the Application Service again, see below how to check for valid TCP port and IP address.

  Using the iSeries NETSTAT command

  Use the command NETSTAT to view the list of used IP addresses on the iSeries and select the menu option 3 - Work with TCP/IP connection status

  ===>NETSTAT [Enter]



                         Work with TCP/IP Connection Status
                                                               System:   DKSOFT00
   Type options, press Enter.
     3=Enable debug   4=End   5=Display details   6=Disable debug
     8=Display jobs

        Remote           Remote     Local
   Opt  Address          Port       Port       Idle Time  State
        *                *          ftp-con >  000:52:39  Listen
        *                *          telnet     000:29:57  Listen
        *                *          smtp       238:56:17  Listen
        *                *          www-http   002:36:49  Listen
        *                *          pop3       238:56:19  Listen
        *                *          netbios >  238:56:19  Listen
        *                *          netbios >  000:00:36  *UDP
        *                *          netbios >  000:00:21  *UDP
        *                *          netbios >  000:29:07  Listen
        *                *          cifs       001:27:59  Listen
        *                *          drda       238:57:26  Listen
        *                *          ddm        238:57:26  Listen
                                                                     Mere...
   F3=Exit   F5=Refresh   F9=Command line   F11=Display byte counts   F12=Cancel
   F15=Subset   F22=Display entire field    F24=More keys




  Using the iSeries CFGTCP command

  Use the command CFGTCP followed by selection of the menu option 1 - Work with TCP/IP interfaces to view a list of available IP addresses on the iSeries.

  ===>CFGTCP [Enter]



                            Work with TCP/IP Interfaces
                                                               System:   DKSOFT00
   Type options, press Enter.
     1=Add   2=Change   4=Remove   5=Display   9=Start   10=End

        Internet         Subnet              Line      Line
   Opt  Address          Mask             Description  Type

        127.0.0.1        255.0.0.0        *LOOPBACK    *NONE
        192.168.1.1      255.255.255.0    ETHLAN1      *ELAN
        192.168.1.2      255.255.255.0    ETHLAN2      *ELAN
        192.168.100.1    255.255.255.0    ETHLAN3      *ELAN








                                                                     Slut
   F3=Exit      F5=Refresh   F6=Print list   F11=Display interface status
   F12=Cancel   F17=Top      F18=Bottom




• Error code 35 - Connect failed, indicates that the Application Service was unable to connect to the Websydian Server. Check that the correct TCP port and IP address is specified for the Websydian Server and make sure that the Websydian Server is started. Check the document Starting Websydian Server on iSeries for information on how to do this.
